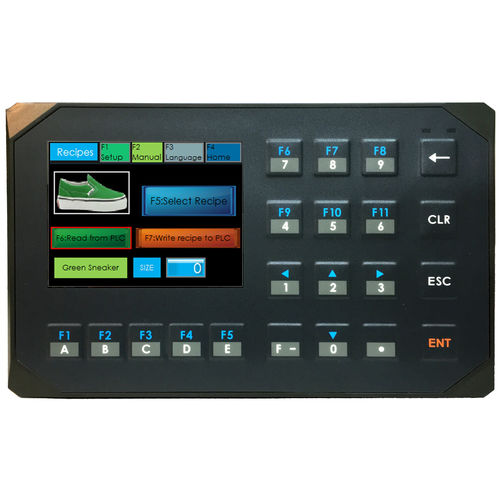

The NK03 is 3.5” keypad HMI equipped with ARM 9 (400MHz) CPU, 128MB SDRAM, 128MB Flash and rich communication interfaces, including RS-232/422/485, USB (host/device), and Ethernet port. The system comes with function and numeric keys, IP65 front panel protection against dust and water, and panel mount design.
With iFace Designer, the HMI visualization software, it fulfills all aspects of monitoring and control requirements in factory/process automation, measurement systems, and industrial IoT applications via the database of splendid vector graphics, wide coverage of PLC drivers, industrial communication and cloud communication protocols.
NK03 HMI Features
– ARM9 (400MHz)
– 320 x 240 TFT, 300 cd/m2, 20,000 hours
– DC 24V+20%
– Plastic chassis, fan-less design
– Panel Mount, IP65 front bezel
– Suitable for industrial application
Interface : with keyboard
Mounting : panel-mount
Resolution : 320 x 240
Processor : ARM9
Other characteristics : TFT LCD, programmable, 24V DC, economical, USB, RS232, RS422/RS485, Modbus, IP65
Applications : industrial, operator interface, for control panels
Screen size : 3.5 in
