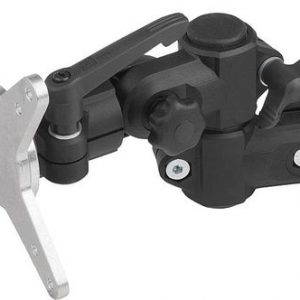

The RK monitor mounting is high-strength, making it suitable for industrial applications

The demands on a monitor mounting in industrial use are high: They should have a higher load-bearing capacity and be vibration-proof. In addition, they should meet the requirements for an ergonomic workstation. This means that it should be possible to adjust all degrees of freedom independently and separately, and without tools. Then it must reliably hold the device in the set position even if exposed to Shocks.

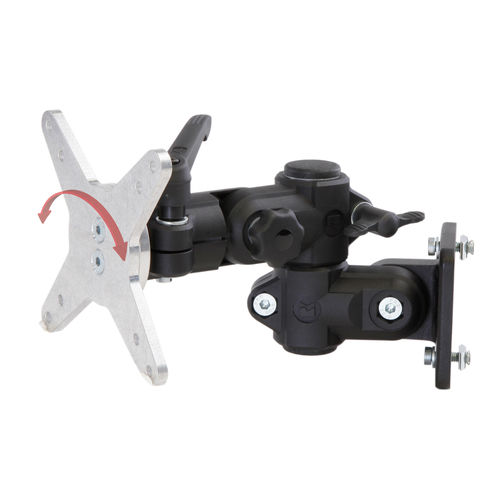

Monitor attachment via VESA or universal Mount

One great advantage of the brackets is the flexibility they offer for device fitting dimensions and for installation options. The user can mount the screens/control panels via a VESA Standard 75/100 connecting plate – in other words, with a 75 x 75 mm or 100 x 100 mm mounting hole pattern – or a round aluminium universal mounting surface. Thus, in principle, just about any panel can easily be connected up without special components. The monitor mounting can be mounted in the slot of any aluminium profile system using slot stones, or on any other tube, profile or any wall. The screws and slots stones required for installation on an RK profile system are included in the scope of delivery. The RK monitor mounting is made of an optimised mix of materials: The wall mount and connecting plates are made of aluminium, the tube connectors of high-strength plastic. Since the construction consists of optimised RK standard products, the monitor mounting, including all installation options, is economical and available in no time.

Caracteristic : high-strength
