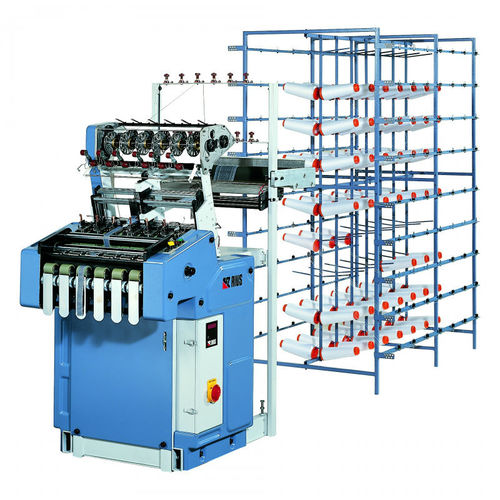

High-speed loomKNITRAMA

High-speed automatic needle loom for standard weaving tapes.

Number of tapes to produce simultaneously: 2 / 4 / 6 / 8 / 10

Reed width: 30 / 45 / 65 / 210 mm.

Tape maximum width: 25 / 40 / 60 / 200 mm.

Number of heald frames: 12 (it can be supplied till 16, on demand)
Traction of the heald frames: by link chain.
Pick repeat till 48
Weft feeding by feeding plates.
Retention weft thread at one edge.
Weft density change by gear from 3,5 up to 36,7 picks/cm
Electronic and automatic stop motion in case of weft yarn breakage by individualized system.
Electronic and automatic stop motion in case of warp yarn breakage.
Tape dragging system through a steel cylinder.
Advancing system by impulses.
Start, stop and jogging buttons
Indicator lights for yarn breakage.
Motor of 1.5 H.P.1.000 r.p.m. 220/380V 50/60HZ 3PH

Other characteristics : high-speed, needle
