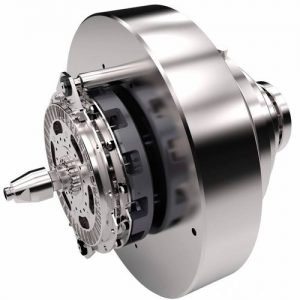

Versatile angular gear unit. Three backlash versions. For highest requirements. Hollow or solid shaft. Short motor adapter with plug-in coupling for the attachment of standard motors and stainless steel motors in accordance with IEC and NEMA-C.
Shaft design
– Solid shaft with key
– Solid shaft without key (K1 – K4, starting at K5 on request)
– Solid shaft on both sides
– Hollow shaft with keyway
– Hollow shaft with shrink ring
Housing Designs
– Pitch circle diameter
– Round flange
– Foot + pitch circle diameter
– Foot + round flange
– Pitch circle diameter + torque arm bracket
– Foot + pitch circle diameter + torque arm bracket
Backlash
– Standard
– Class II
– Class I
Mounting Positions
– Any mounting position.
– You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance
– Mineral lubricant CLP ISO VG 220
– Option: Synthetic lubricant CLP HC ISO VG 220
Under normal operating conditions no lubricant change is required for gear unit size K1 to K4 (lubricated for life).
We recommend a change of lubricant for gear unit size K5 to K10 after approx. 10,000 hours of operation.
MR Motor Adapter
Round motor connection for IEC and NEMAC-C standard motors with choice of couplings:
– Backlash-free plug-in coupling
– Curved tooth coupling

Type : helical
Shaft orientation : right angle
Torque : 20 – 50 Nm, 100 – 200 Nm, 50 – 100 Nm, > 10 kNm, 0.5 – 1 Nm, 200 – 500 Nm, 500 – 1000 Nm, 1 – 2 kNm, 10 – 20 Nm, 5 – 10 kNm, 1 – 5 Nm, 2 – 5 kNm, 0.2 – 0.5 Nm, 5 – 10 Nm
Shaft configuration : hollow-shaft
Performance : precision
Applications : for shaft
Other characteristics : compact, stainless steel, motor
Rotational speed : Min.:
