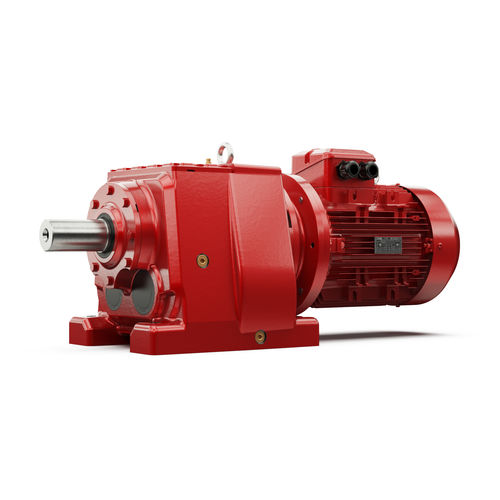

Available in one or two stage of gears, the IR Series gearboxes provide optimal solutions for a large range of application. The unicase housing of the gearbox and the gears technology is offering a perfect balance between power and space optimization.

Product advantages:

– Compact modular mounting
– Large range of mounting solutions
– Adapted to a large range of sectors and applications
– High ratios to reach low rotation speed
– Support high radial load.

Type of applications :

– Mixers
– Conveyors
– Water treatment
– Packaging

Motor type : AC
Type : helical
Shaft orientation : coaxial
Shaft configuration : solid-shaft
Power : 100 W…500 W, 500 W…1000 W, 1 kW…2 kW, 2 kW…5 kW, 10 kW…20 kW, 20 kW…50 kW, 50 kW…100 kW, 100 kW…200 kW
Torque : 200 – 500 Nm, 500 – 1000 Nm, 1 – 2 kNm, 2 – 5 kNm
Performance : for heavy loads
Product applications : for the food industry, industrial, industrial door, for the chemical industry, for heavy loads, for automation, for medical equipment, for industrial applications, for lifting applications, for conveyors, for hostile environments, for mixers, for the packaging industry, for pharmaceutical applications, for automatic distributors, wiper, for hygienic applications
Other characteristics : compact, modular, cast iron
Gear ratio : Min.:
