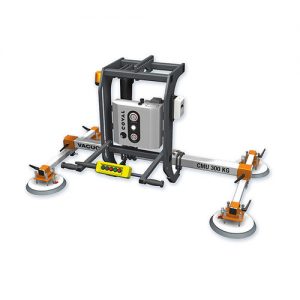

VACUOGRIP VGH – HORIZONTAL VACUUM LIFTING DEVICES
Horizontal handling of sheets from 100 to 1000 kg

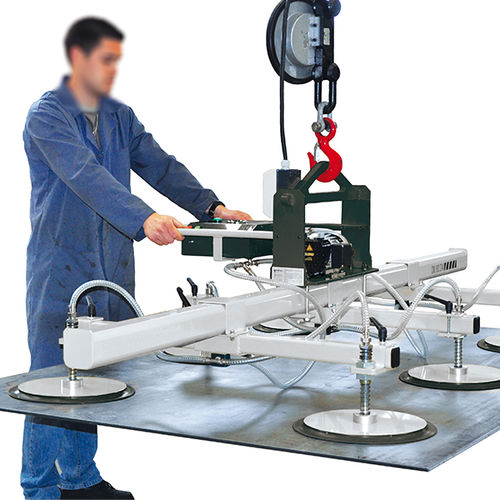

The VACUOGRIP VGH range of vacuum lifting devices is COVAL’s standard response to the need for handling smooth and sealed loads (sheets, panels, etc.) by a single operator.
Easy to use, they are distinguished by their reliability and robustness, and are available in electric or pneumatic versions, in 4, 6 or 8 suction cups.
VACUOGRIP vacuum lifting devices are specifically designed for the following applications:
■ Palletizing and depalletizing
■ Feeding machinery
■ Unloading conveyors
The ideal solution for handling sheet metal without deformation or marks.
SAFETY
The VACUOGRIP, VGH series line includes the following safety features:
■ Vacuum tank in main beam
■ Check valve
■ Vacuum gauge with red/green operating ranges, pointer indicates the vacuum level in suction cups
■ Warning Alarm in case of power cut or drop of vacuum level
■ Power on indicator
■ 2 red “Release” buttons that force the user to use both hands
According to your applications and needs, additional features can be selected from the Option Packs.
COVAL vacuum lifting devices comply with the EU Machinery 2006/42/EC and Low voltage 2014/35/EU directives as well as with European standard EN 13155.
Model : H-shaped
Product applications : for sheet metal, for heavy loads, for marble, for flat parts, industrial, for aeronautical applications, for overhead cranes
Type : adjustable, horizontal
Power : electric, pneumatic
Options : high-speed, secure
Number of cups : 4 unit, 6 unit, 8 unit
Carrying capacity : Min.:
