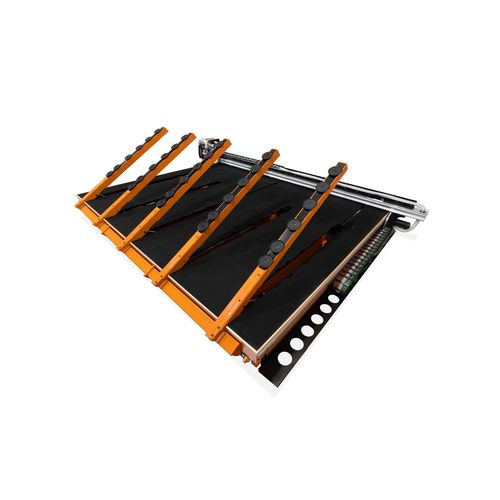

Autonomous cutting table for 6-metre glass equiped with automatic loading system – VA. Its innovative design meets the loading, cutting and automatic unloading needs of the most demanding customers, ensuring maximum productivity and automation in the smallest possible space.
The automatic loader is integrated into the structure of the cutting table itself, optimising the loading, positioning, cutting and unloading or cutting processes in just 35 m2. It means extensive economic and logistical benefits for the customer.
Max. Speed: 220 m/min
Max. Acceleration: 17 m/s²
Accuracy: ±0,15 mm (0.006″)
Glass thickness: 1,8-25 mm (0,07”-1”)
Traction system:: Gantry
Maximum cutting width: 6100 x 3300 mm (241” x 130”)
Entrance: Transversal
Loading: Suction cups
Positioning: Automatic
Evacuation: Automatic
STANDARD FEATURES
Sistema de carga
New instantaneous separation system that puts an end to the problems associated with the glass sheet separation process.
Speed and loading time are significantly improved, reducing loading time to a minimum without compromising safety in any way.
4TOOL
4tool cutting head system which incorporates four individual, automatically selectable cutting tools. Each with its own cutting wheel, independent lubrication system and pressure cylinder specifically dimensioned for its cutting range.
The RUBI 406VA, on the other hand, loads the glass sheets directly from the warehouse rack, optimising space and allowing the area not used by the automatic loader to be used to increase the storage capacity of the system.
Materials : for glass
Width : 5,170 mm (204 in)
Length : 6,360 mm (250 in)
