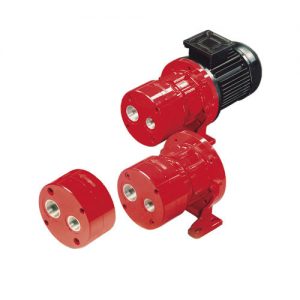

Frame size 4, 5
Size 20 … 140
Maximum operating pressure 15 bar
Maximum displacement 136.3 cm³
Features
Low-pressure pump with fixed displacement
Very low operating noise
Suitable for broad viscosity and speed ranges
Excellent suction characteristics
Can be combined with axial piston pumps, internal gear pumps and vane pumps
Use for: Cooling, filter or lubricant circuits with low pressures in industrial or mobile
applications, e.g. plastics processing machines, machine tools, presses and wind turbines.
Product description
Set-up

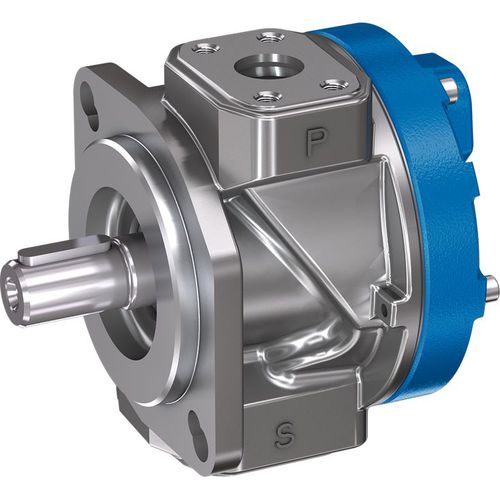

Hydraulic pumps of type PGZ type are gerotor pumps with constant displacement.
They basically comprise of: Flange housing (1), shaft (2), the displacer element inner rotor (3) and gerotor (4) as well as driving disk (5) and cover (6).
Suction and displacement procedure
Via the driving disk, the shaft drives the inner rotor in the indicated direction of rotation. The inner rotor cogs with the gerotor to turn it.
The tooth clearances opening in the suction range (S) suck in the hydraulic fluid. The separation of suction and pressure range is implemented on the opposite side of the meshing area (Z) by means of a radial gap (R) created by the
tooth profile of the gerotor and the inner rotor sliding against each other.
Within the pressure range (P), the hydraulic fluid is pumped into the pressure port by means of the chambers becoming smaller.
Fluid : oil
Operation : hydraulically-operated
Priming : self-priming
Technology : gerotor
Domain : industrial
Applications : cooling, mobile, for cooling systems, for lubrication systems
Mobility : stationary
Other characteristics : suction, low-noise, low-pressure, fixed-displacement
Flow : Min.:
Pressure : 15 bar (217.557 psi)
