ZEISS AICell trace
A correlation-free inline measuring cell
The ZEISS AICell trace correlation-free in-line measuring cell enables real-time process monitoring of complex characteristics and ramp-up support of the car body production processes.

Your advantages:
Correlation-free
Reliable measuring results starting with the first part
Usage in the production area including temperature fluctuations
Robot-Independent accuracy
Measurement of both individual parts and complete car body inline
Higher system accuracy

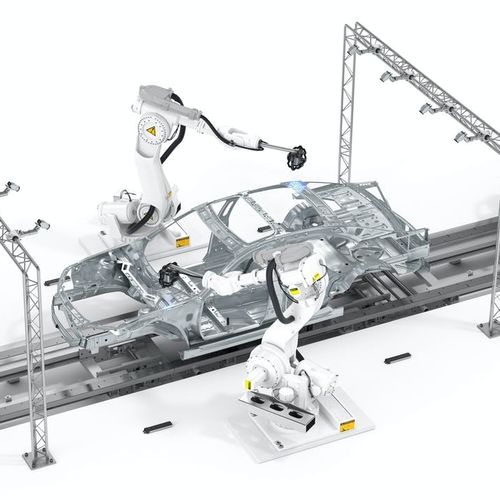

TraceCam
Tracking cameras
The production floor cameras capture both the exact position of the robot as well as their own location.

Stability Modules

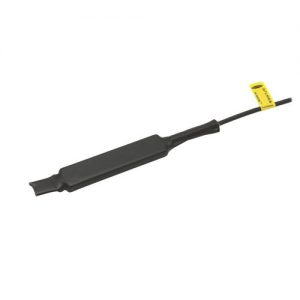

Fixed Floor Markers
Stability modules on the ground are fixed reference for the tracking system even with temperature fluctuations in the production environment.

Sensor Navigation Tool
LED
The ZEISS AIMax cloud 3D sensor generates point clouds for the real-time analysis of complex geometric features in a fraction of a second. LED tags integrated into a carbon body form a fixed unit with the sensor. They are used to identify sensor’s location and position

Correlation-free
No correlation with the CMM required.
No removal of components and entire bodies from the production line is necessary. No time delays by moving the components to a different location.
More capacities for the the measuring room due to reduced correlation measurements.

Measured physical value : geometry, position
Technology : 3D, real-time, robotic
Measured material : parts
Applications : for production lines, for the automotive industry
Other characteristics : online
