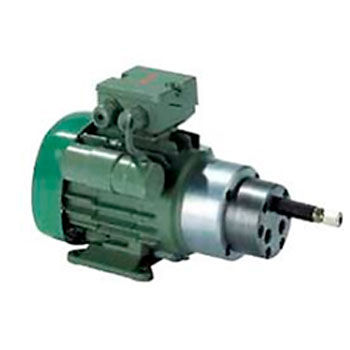

Gear pumpGPU1

Gear pump for base mount

Key features:
– Operating pressure: 35 bar
– Temperature: from 0 to 80 °C
– Lubricant: oil 20 to 750 mm²/s
– Protection grade: IP44
– Type of drive: electrical

Gear pumps up to 3 litres flow rate and a maximum pumping pressure of 35 bar. This pump is designed for base mount.

ADVANTAGES
– Economical through closed circuit
– Environment friendly
– Function monitoring

LUBRICATION SYSTEM
This lubrication system is preferably used, if an additional cooling and cleaning of the lubrication point is requested. In this lubrication system, after the supply to the lubrication point, oil is led back to the lubrication unit and reused. Due to this impurities are removed and very high temperatures are avoided.
The closed oil circuit supports such an environmentally friendly and economical lubrication system.
A screw spindle or gear pump dispenses the oil from the tank via a pressure filter to the distributors. The desired oil quantity can be fed to the lubrication points via flow regulators or throttles.
Pressure switch, flow regulators with electrical monitoring, temperature sensors and circulation controls are used for monitoring.

APPLICATION
For lubricating and cooling supports and gearboxes.
To be used in the fields of lubrication, refrigeration, hydraulics and, more generally, for the circulation of fluids.

Fluid : for coolant, oil
Operation : electric
Priming : normal priming
Technology : gear
Domain : industrial
Applications : cooling, lubrication, for lubrication units, for refrigeration, for lubrication systems
Fluid specification : for mineral oil
Mobility : stationary
Voltage : 400V
Other characteristics : compact
Flow : Min.:
Pressure : 35 bar (507.632 psi)
Power : Min.:
Fluid temperature : Min.:
