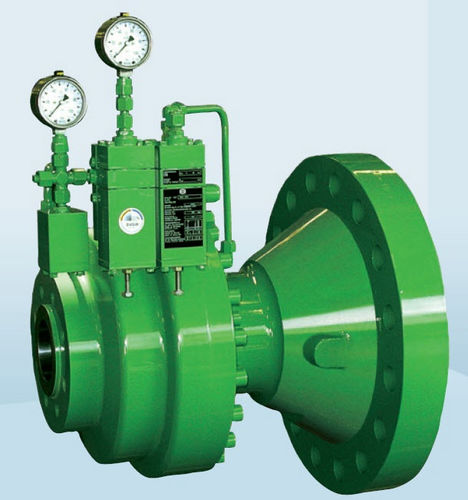

Pilot-operated Gas Pressure Regulator According to DIN EN 334 (operating with auxiliary energy from the inlet pressure range)
Application Device for transfer stations in gas
transport networks for power plants and industrial facilities
Well suited for gas turbines due to exellent regulating dynamics
Reverse flow protection as option
Rugged and simple design
High KG values of pipe sizes due to axial flow
Also available with reduced KG values for best adaptation to operating conditions
Can be supplied outlet DN = inlet DN or with noise-reducing outlet
Suitable for complex pneumatic & electric automation systems
Fail-close and fail-open function also available
Suitable for non-aggressive gases, other gases on enquiry
CE-registration according to PEDl
Max. admissible pressure PS = 100 bar
Max. inlet pressure pu max up to 100 bar
Outlet pressure range Wd 0.3 bar to 90 bar
Minimum pressure drop 1.5 bar, others on enquiry
Class of lock-up pressure zone
SZ 2,5
Connection – DIN flange PN 25, PN 40
– Flange Classes 150, 300 and 600
according to ANSI 16.5
with pipe sizes inlet
– DN 25, DN 50,DN 80, DN 100, DN 150,
DN 200, DN 250, DN 300
Flange Class 900 upon request
Product : for gas
Technology : membrane
Number of stages : two-stage
Applications : industrial
Other characteristics : pilote-operated
Pressure : 100 bar (1,450.38 psi)
