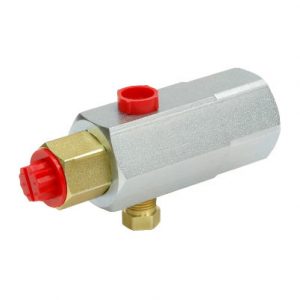

The Low-pressure regulator is a hand-operated, spring-loaded low pressure regulator with diaphragm, and it has unified safety valve, hence it is not good for gas pressure regulation in closed rooms. The body of the product is made of zinc-die cast, the elastomer is made of NBR/ Buna-N and the inner valve is made of brass. The gauge port is G1/4 on one side of the body, except on R01-5/-6 and RL13-0.
The maximum supply pressure of R01-5/-6 is 16 bar, with a maximum supply pressure of R01-2/-3/-4 and RL13-5 is at 10 bar while the RL13-0 has maximum of 6 bar. The accuracy at minimum supply pressure and flow is < 5% FS pressure deviation. Its accuracy at maximum supply pressure and flow is < 15% FS pressure deviation and accuracy at maximum supply pressure without flow is < 25% FS pressure deviation. The RL13-0 cannot be adjusted because it has no individual settings, R01-5/-6 can be adjusted by adjusting knob and dial enabling eleven settings for different outlet pressures and R01-2/-3/-4 can be adjusted by T-handle with lock-nut. Product : for gas, for air Technology : membrane, spring Number of stages : single-stage Material : brass Applications : low-pressure Pressure : Min.:
