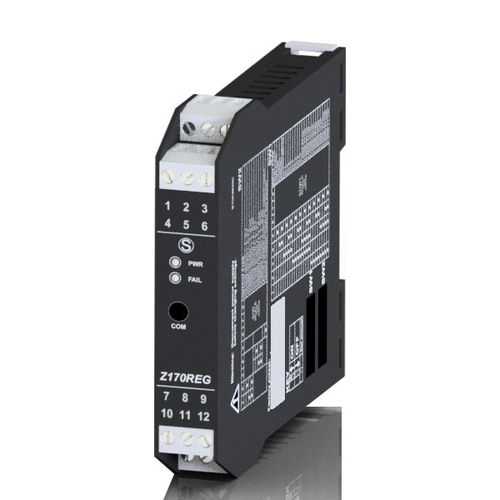

Z170REG-1
DC duplicator / isolator with universal input and 2 output
Z170REG-1 allows to convert and duplicate an analog signal (mA, V, PT100, Pt1000, Pt500, Ni100, TCs, Ohm) by 2 indipendents outputs (mA or V). It disposes also of dip switches to set the available input/output ranges. The auxiliary power supply allows also an active or passive connections on the output side. A 4-way galvanic isolation among Power supply // input // output1 // output2 circuits assures the integrity of your datas.
TECHNICAL DATA
POWER SUPPLY10..40 Vdc; 19..28 Vac
TRANSDUCERS POWER SUPPLYYes, Max 25 mA, 17 Vdc
POWER CONSUMPTION0,5..2 W
INSULATION1.500 Vac
STATUS LEDPower supply
Alarm
ACCURACY CLASS0,1%
INTERFACEMicro USB (front panel)
INPUT CHANNEL1 settable input:
VOLTAGE: 0..10 V settable scale
CURRENT: 0..20 mA (active/passive module) settable scale
Potentiometer: 1 kΩ ..100 kΩ settable scale
TC: J,K,R,S,T,B,E,N
RTD: Pt100, Pt500, Pt1000, Ni100
Resolution 14 bit
Sampling period settable from 5 up to 20 ms
OUTPUT CHANNELS2 settable outputs:
VOLTAGE: 0..10 V settable scale
CURRENT: 0..20 mA (active/passive) settable scale
Resolution 14 bit
Type : galvanic, signal
Electrical characteristics : DC
Other characteristics : USB
