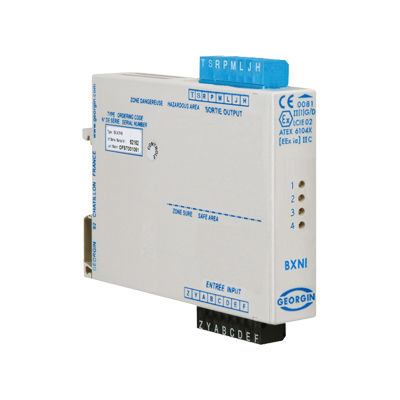

Galvanic isolatorBXNI series

This device is designed to isolate 4/20mA signals between the safe and the hazardous areas.

Input:Current (4/20mA)
Output: Current (4/20mA)
Supply: No power supply required
Model: 1, 2 or 4 channels
Setting: Adjustment potentiometer for the source on the front
Installation : Safe area

Options:
» Screw terminals
» Ex d enclosure – RTPE9-DIN or other Ex d enclosure

EC Type examination certificate number :
LCIE 02 ATEX 6104X

IECEx conformity certificate :
LCI 09.0013X

ATEX/IECEx classification :
II (1) GD [Ex ia] IIC or [Ex ia] IIB or [Ex iaD]

Type : galvanic
Electrical characteristics : current
Other characteristics : ATEX
