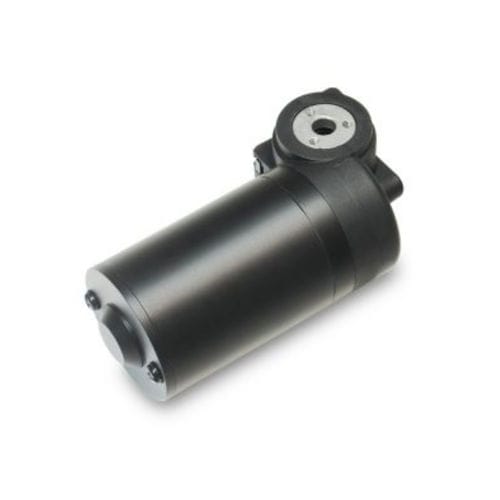

MTM4-LF is a hollow shaft gear motor. It can be used with MTC3 control box, MTS2 built-in spindle and MTP3 / MTP4 control panel, as a smooth and quiet solution for electric lifting table.
Main applications: Furniture
Technical Information
– Input voltage: 24V DC
– Max. speed at no load: 110rpm after gear reduction
– Max. torque: 7Nm
– Dual Hall sensors positioning feedback
– Hollow shaft: Hexagon 6 mm diameter
– Noise level: ≦53dB
– IP Protection level: IP30
– Color: Black
– Power cord length: 1000 mm
– Duty cycle: 10%, max. 2 min. continuous operation in 20 min.
– Certified: CE marking, EMC Directive 2014/30/EU
Options
– Standard motor / High speed motor
Motor type : DC
Type : worm
Shaft orientation : right angle
Shaft configuration : hollow-shaft
Torque : 5 – 10 Nm
Voltage : 24V
Product applications : for furniture
Certifications : CE
Other characteristics : low-noise, with encoder
Operating temperature : Min.:
