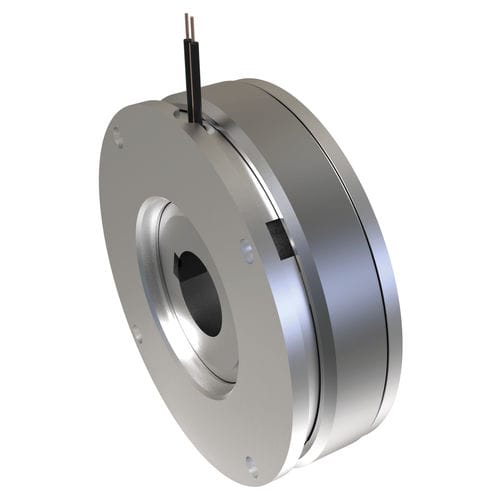

is an electromagnetic pole face clutch actuated by industrial current. By applying a DC voltage to the magnetic coil, a magnetic field is formed. This pulls the armature plate against the rotor with friction lining. The torque is transmitted by frictional engagement. The torque is transmitted from the drive element via the armature disk and the rotor to the output shaft. In the de-energised state, a diaphragm spring pulls the armature disk back to the drive element (e.g. belt pulley). This disconnects the power transmission.
Product features
Application
Preferred for static and quasi-static applications
Benefits
High durability
Short switching times
High torque security with low friction work
Construction – Protection class
Electrical: Protection class IP 54
Temperature
Temperature range from -20° C to 40° C
Insulation class F
Duty cycle
Applicable for 100 % ED
Type : friction
Operation : electromagnetic, spring, magnetic
Torque : Min.:
Rotational speed : Min.:
