High Performance,
High precision
VACUUM FOOD TRANSFER PUMP.
Lower body height and hopper.
Easy to check meat inside the hopper.
Good for lower ceiling factory.
For the constant pressured operation with high speed linking and hanging system LINKWEL, MACHWEL and etc. Not only that, it is also good to connect hamburg former and to pump the viscous stuff etc.
Vane Pump
Due to the new type vane pump, it is accomplished to convey products without damaging such as crushing and breaking into pieces.
Production Control
All vital data including cycles run, set points, etc, can be checked at anytime.
Foldable Hopper with Screw Feeder
Hopper is internally equipped with Screw Feeder. It makes to use up all meat without waste. Also, since Hopper is foldable, it is easy and simple to wash.
Pump Specification

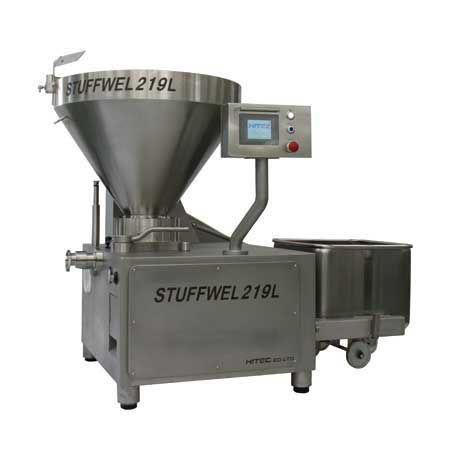

The STUFFWEL 219L can also be used as a meat transfer pump by using PID device and controling the meat pressure inside the piping.The layout above is an example of Hitec MACHWEL machine. One STUFFWEL 219L can be connected to multiple linking and hanging machines.
Fluid : for food products
Operation : electric
Technology : rotary vane
Domain : for the food industry
Applications : transfer
Material : stainless steel
Mobility : stationary
Length : 1,237 mm, 1,870 mm (49 in)
Height : 1,553 mm (61 in)
Weight : 700 kg, 925 kg (1,543.24 lb)
Pressure : 40 bar (580.151 psi)
Power : 4.8 kW, 6.25 kW (6.53 hp)
