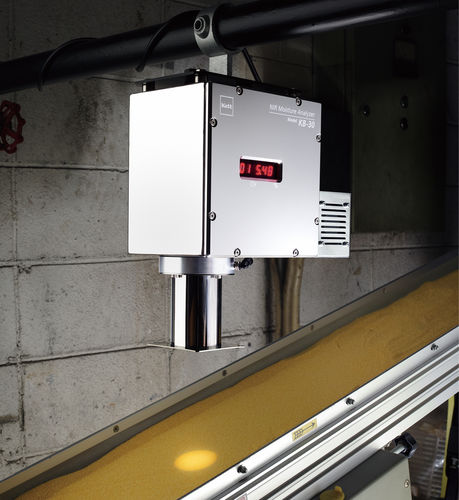

Moisture Analyzers NIR Moisture Analyzer KB-30

Features
• – Reasonably priced model of in-line NIR moisture analyzer
• – Measures moisture on the production line in real time
• – Rated as IP66 water and dust protection grade
• – Uncoated finish prevents rust and peeling paint from mixing into the line

IDEAL UNIT FOR PROCESS CONTROL OF MOISTURE
In-line measurement by the KB-30 éliminâtes the cost of batch measurement. Moreover, continuous information output instantaneously from KB-30 is available to alarm devices, a recorder or a process control monitor. Instantaneous output enables your quick response.
Imagine the effect when used on your production line.
TEMPERATURE COMPENSATED
Each KB-30 is automatically température compensated. Measurements retain a high accuracy by minimizing the influence of ambient température changes.
STRONG IN MEASUREMENT DISTANCE VARIATION
When measuring using near-infrared réflectance it is préférable that the target distance remain stable. The KB-30 can provide accurate measurement even if there are height changes.

Spécification
Measurement method – N IR réflectance / Absorbance
Measurement distance – 260mm ± 30mm
Measurement diameter – 25mm in diameter at 260mm distance
Refresh rate – 0.5 sec
Number of calibration curves – 50
Display – Red color 7 segment LED
Light source – Tungsten lamp
Max. number of sensor heads – 30
Ambient température – 5 – 35°C
Ambient humidity – 30 – 80% RH (without condensation)
Analog current output – 4 – 20mA DC
External communications – RS232C / RS485
Protection – IP66
Regulatory certification – CE
Power source / consumption – AC 100 – 240V (50 / 60Hz) / 50W
Dimensions – 268(W) x 306(H) x 140(D) mm
NETWeight – 7.0 kg (including the hood and cables)
