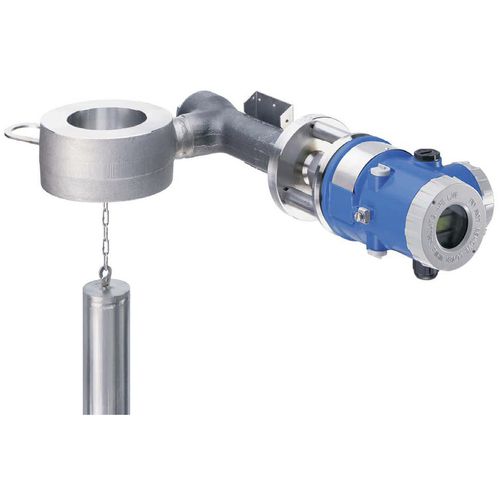

These intelligent transmitters are designed to measure liquid level, interface or density of liquids. The measurement is based on the Archimedes buoyancy principle.

Easy remote configuration and supervision with PC or HART Hand terminal. The devices also can be operated conventionally using the local keys. Total I/A Series measurement integration is possible through HART, PROFIBUS or FOUNDATION fieldbus communication.

The transmitters are approved for use in hazardous areas and SIL applications.

Accessories are required for operation and mounting. See 204xx Accessories for Level Transmitters.

Benefits

Process temperature –196 to +500 °C (–320 to +932 °F)
Rugged design with high reliability
Reliable interface measurement – also at diffuse interface
Electrical Classification Explosion Proof and Intrinsically Safe acc. to ATEX and FM
A wide range of materials allows the optimal adaption to the process.

Applications

Steam Drum/Boiler Drum
Oil/Water Separation
Biodiesel production
Polyester/Nylon Fiber production
Ammonia production
High Temperature and High Pressure

Technology : float
Medium : for liquids
Interface : HART, PROFIBUS
Applications : high-temperature
Other characteristics : rugged, ATEX, intrinsically safe
Level range : Max.:
Process pressure : Max.:
Process temperature : Max.:
