Temperature range -50°C to +60°C
80 kg payload
60 NM torque
Ethernet and RS-485 communication
Standard Sun Sensor
No regular maintenance required

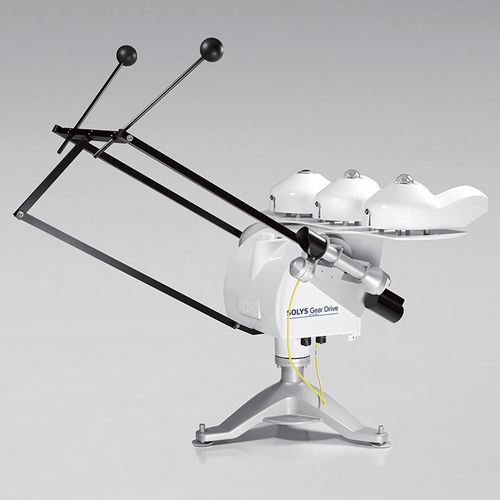

SOLYS Gear Drive Sun Tracker
SOLYS Gear Drive is a high end sun tracker for all weather conditions and locations. It builds on the features of the SOLYS 2 and has enhanced capabilities that make it suitable for use with heavy loads and in the harshest climates. It has the power to point accurately at the sun in very high winds, and to break the ice that can build up overnight when the tracker is ‘sleeping’.

High payload for multiple and / or heavy instruments
The high precision gear drive system requires no regular maintenance and is much more powerful than the belt drive system of the SOLYS 2. The maximum payload is increased to 80 kg and the torque is raised to 60 Nm, allowing SOLYS Gear Drive to carry multiple and/or heavy instruments and other loads. The integrated GPS receiver automatically configures location and very accurate time information upon installation.

Smart software for real-time status information
The included user interface software allows remote monitoring and logging of the tracker status, sun zenith and azimuth angles, GPS time and date and more. The software can also be used to set the communication parameters such as fixed or manual IP address and baud rate. The integrated Web Interface can be used to visualise (get and set) operational parameters, download history log files or upload new firmware when available.

Other characteristics : fixed
