PERUZA FULL WEIGHT GRADER
Application
The Flow Weight Grader has been designed for continuous and fast fish dosing in boxes.
It makes precise weighing of the fish and places them into relevant boxes.
PERUZA Flow Weight Grader can be enabled for grading fish in boxes by specific size, also considering their weight.
Main benefits
Continuous grading process
Precise and fast weighing
Adjustable speed
Requires only 1 operator at each gate
Operating principle

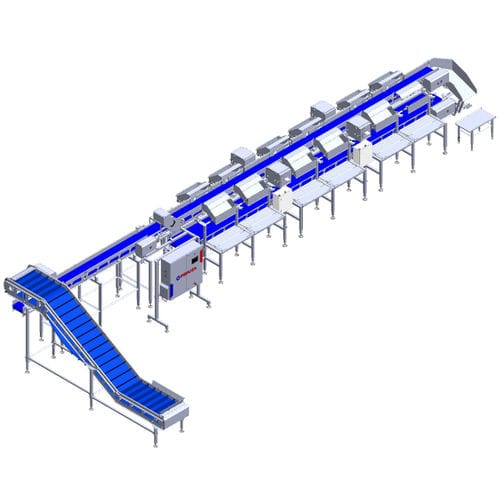

Product for grading is filled by operator on infeed Z-type conveyor – one product per pocket.
It is transported and transferred to acceleration conveyor.
Each product is weighed separately in flow weight conveyor unit.
The weight is compared to correct exit gate grade and transported along the main conveyor to corresponding exit gate.
When boxes at several station have reached close to needed weight, the product will be transferred to exit gate that has lowest possible up-weight compared to other gates.
Technical characteristics
Product Whole-round fish
Processing capacity 60-120 fish per minute
Equipment dimension (LxWxH) 13800 x 2340 x 2230 (mm)
Number of operators on the machine 0-1
Key features Adaptable, effectivness, repeatability
Applications : for fish
Technology : belt
Other characteristics : with conveyor, scale
