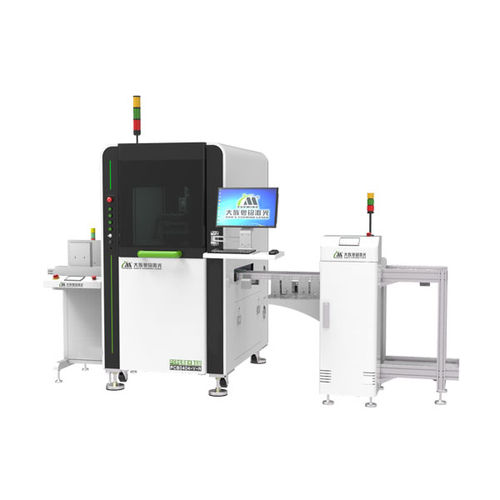

PCB Laser Marking Machine Series PCB0404-V-A

Features
1.Imported CO2/fiber/green laser/UV laser generator, wonderful marking performance， fast speed, high productivity;

2.High precision CCD realizes automatic positioning, reading code and rating;

3.It has a large span and wide adaptability;

4.It can seamlessly dock with the SMT production line, and can also connect with the customer MES system for online data transmission and information feedback;

5.High quality accessories to ensure reliable quality. Abnormal automatic alarm and suspension;

6.Compatible to online&offline processing mode, with embeded to realize marking on double sides.

Technical Parameter

Model : PCB0404-V-A
Max Size(mm):450 X 400
Laser Source(W) :
CO 2 :10 / UV:5 / Fiber:20 (etc)
Marking area(mm) : 110 × 110 Standard
Code Size (mm) : 1.5~20
Overall dimension(mm) : 1000 X 1600 X 1800
Machining accuracy(mm):±0.15
Visual positioning accuracy(mm):±0.03
Visual positioning accuracy(mm) : ±0.1
Weight(Kg) : 1000
Supply voltage : :AC220V,50HZ,20A
Gross power(Kw):4
Feeding Method : Online / Offline

Technique : fiber laser, CO2 laser, UV laser
Applications : for PCB
