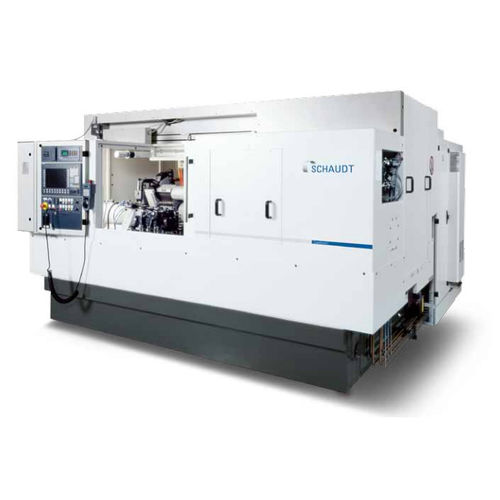

The single-slide CamGrind L can be retooled and upgraded to meet changing application requirements at any time, thanks to its perfectly coordinated modular design. In addition to individual machining, this machine can also handle complete production lines.

Machine description

Compact cross-slide machine for cylindrical and noncircular grinding of shaft-type workpieces up to 1100 mm in length, height of centres 220 mm
Single-slide machine with max. 3 grinding wheels for individual machining and production lines
Use of CBN grinding wheels up to 480 mm Ø
Digital drives for high-precision axis positioning
Machine bed with optimal damping characteristics

Options

Swivel-in spindle for machining of cam forms with concave radii.
B-axis in the optimum configuration with up to 3 grinding spindles
Portal loading system

Granitan® machine base
The CamGrind L1 has a proven Granitan® machine bed. This material possesses excellent damping characteristics and high thermal stability. This is a big advantage when machining workpieces with high quality requirements.

Swivel-in spindle
Thanks to SCHAUDT‘s patented swivel-in spindle, the CamGrind L1 can be additionally equipped with up to two grinding wheel. The spindle is mainly equipped with ceramic CBN wheels. Electroplated or metal-bonded tools can also be used.

Workhead
The CamGrind L1 features a high-precision, directly powered workhead with excellent runout characteristics. The rigid design of the directly powered spindle makes the headstock suitable for clamping with MK4 center points as well as for chuck operation.

Type : external cylindrical
Applications : camshaft
Control type : CNC
Other characteristics : high-precision, CBN, wet, 3-axis
Power : 40 kW (54.4 hp)
X travel : Min.:
Spindle speed : Min.:
