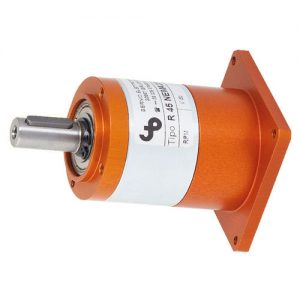

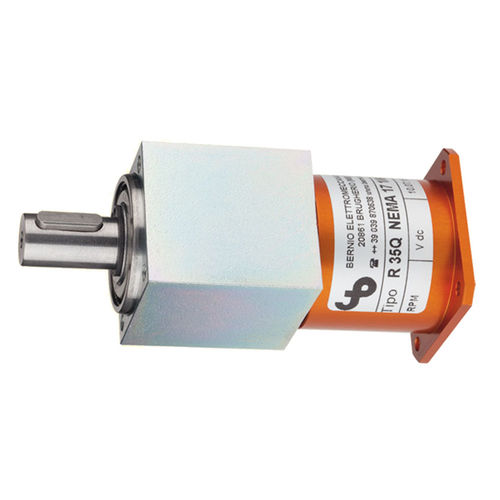

Epicicloidal reduction gearbox with a zinc plated steel frame and a aluminium flange.
Output shaft is supported by two screened bearings. Max speed in the reduction gear 5000 R.P.M. advised speed 3000 R.P.M.
Permanent greasing.
Right to be connected with Nema 17 and Nema 23 motors.
Input shaft ΓΈ 5-6-6.35-8 x 20-21 mm
Max forces which can act on the output shaft: Axial 250 N Radial 400 N on the extremity of output shaft.
Type : epicyclic
Shaft orientation : coaxial
Torque : 1 – 5 Nm, 5 – 10 Nm
Shaft configuration : solid-shaft
Other characteristics : with flange, flange, NEMA 17, NEMA 23, for motors
Rotational speed : Min.:
