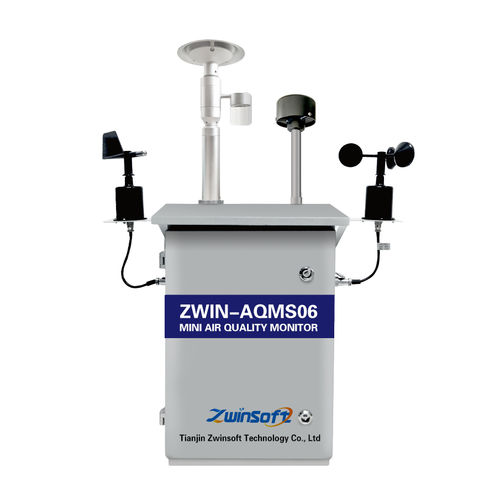

ZWIN-AQMS6 Mini Air Quality Monitor is designed specially for gas detection. All monitoring parameters can be configured , which include O3, NO2,NOx,CO,SO2, PM2.5 and PM10. Other pollutants like VOCs, H2S and CO2, noise and meteorological factors can be configured according to your requirements.

It comes with a pumping gas sensor, which is able to sample the gas and then detect it. The gas sensor can be replaced according to specific needs.

Enclosure – Water-proof,dust-proof,rust-proof,lightning protection, heat dissipation;GPRS transmission, Outdoor installation

Humidity&Temperature module – Temp:-40～120℃; resolution: 0.1℃；
Accuracy:±0.3℃
Humidity:0～100%RH; resolution:0.1%RH；
Accuracy:±2%RH

Particle module – Detection Method:Light scattering laser photometer;Resolution:0.1ug/m3;
Measured Mass Fraction: PM2.5,PM10,TSP
Concentration Range:0～1000ug/m3(optional)

Gas module – NO2: measuring range/resolution:0-1/0.001ppm
Sampling accuracy:±2%FS
CO: measuring range/resolution:0-10/0.001ppm
Sampling accuracy:±2%FS
SO2: measuring range/resolution:0-1/0.001ppm
Sampling accuracy:±2%FS
O3: measuring range/resolution:0-1/0.001ppm
Sampling accuracy:±2%FS

Wind spped& wind direction module – Wind speed:0~45m/s;resolution:0.1m/s
Accuracy:±0.3m/s;Start-up speed:≤0.5m/s

Wind Direction:0-360°;resolution:1°
Accuracy:±3°
Barometric pressure – Range:10～1100hPa, resolution:0.1hPa,Accuracy:±0.3hPa
Software system – Basic functions（Real-time monitoring, query)

Applications : for environmental analysis, outdoor
Measured parameter : CO2, CO, NO2, PM2.5, SO2, ozone, PM10, H2S, noise, NOx
Communication : GPRS
Other characteristics : real-time
