Stainless steel scales “Easy Pesa 2GD” series, for ATEX 1, 21, 2, 22 zones
Fully stainless steel bench scales, for specific use in ATEX hazardous areas. Powered by a long lasting rechargeable battery which allows an easier installation directly where it’s needed. These scales don’t need a power supply socket in dangerous zone nor ATEX proof power supply cables. Provided with the ATEX declaration of conformity. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197°C Db X protection.
–

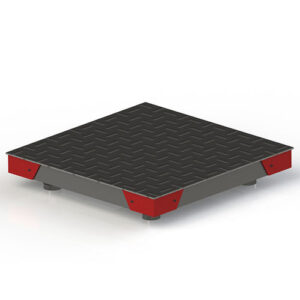

PLATFORM FEATURES
Approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
ATEX approved load cell with ATEX protection:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga.
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
Structure, enclosure and loading plate made in AISI304 satin finish stainless steel.
Adjustable levelling feet with plastic over shoe.
Supplied with support column, height:
– 500 mm in the “Q” models;
– 700 mm in the “X” models.
Type : electronic, commercial, platform
Display : with LCD display
Material : stainless steel
Protection level : IP67, IP68, explosion-proof
Applications : industrial
Weight range : Min.:
