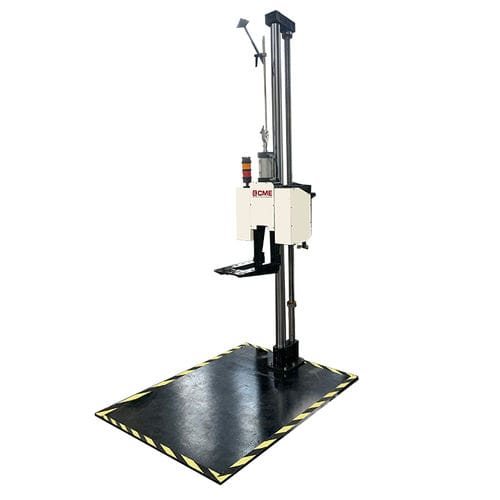

KRD41 series new design small drop tester is suitable for free-fall test of small consumer electronics and components such as mobile phones, walkie-talkies, electronic dictionaries, CD / MD / MP3 and so on， applicable standards JISC 0044 and IEC 60068-2-32. Through standard tests on electronic products (surface drop, corner drop, edge drop, etc.) and collecting data, it simulates the vertical drop impact of electronic products during transportation and handling. It provides a basis for the design of the product’s buffer and vibration damping and the selection of structural materials.

1) Control system based on handheld pad
2) High-strength lifting table
3) Advanced drive system: fully automatic PLC control and high-precision tachometer encoder equipped with high-precision collector
4) Built-in pneumatic release mechanism, electric valve is used to control the extension and retraction of the cylinder
5) Drop method: packaging product face, edge and angle, etc., with edge and angle fixing fixtures to facilitate testing;
6) Single track guide pillar: combined with servo lifting system, low noise, fully automatic positioning, ±1mm positioning accuracy.

Technical Specifications
Model: KRD41-100
Max load: 100kg
Drop height: 300～1500mm
Max. specimen Size:1000×1000×1000mm
Table size: 430mm×300mm
Shock panel size: 1200mm×1200mm
Positioning accuracy: ±1mm
Drop method: face, edge and angle
Control mode: handheld pad control + human-computer interaction system
Air pressure: ≤0.8MPa
Equipment weight: about 2000kg
Power supply: 380V, 50Hz, 3kVA

Applications : for electronic products, for small components
