Electrical contact with wire springs

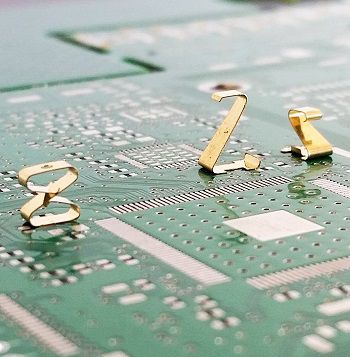

Spring finger contacts (SMT)

Materials
Beryllium Copper or alloy, stainless steel, gold for local surface treatment.
MANUFACTURING PROCESS
Cutting and folding using automated press and cutting machines. Thermal treatment process for mechanical resistance.
Prototyping
With soft tooling for the validation stage.
Options
Local surface treatment. Detailed mechanical and material report (young modulus, cycles of compression, etc.)
Packaging
Bulk, thermoformed tray or reels for pick and place (automation).

Description
These types of contacts (SMT or bulk, standard or custom) provide a flexible connection for ground contact.

Especially used as: battery contact, antenna contact and on PCBs.

They can be assembled by pick and place (SMT process).

Our design department can analyze the mechanical design requirements before proposing any type of SMT metal contact in your application.

Options : with wire springs, finger
Material : copper
