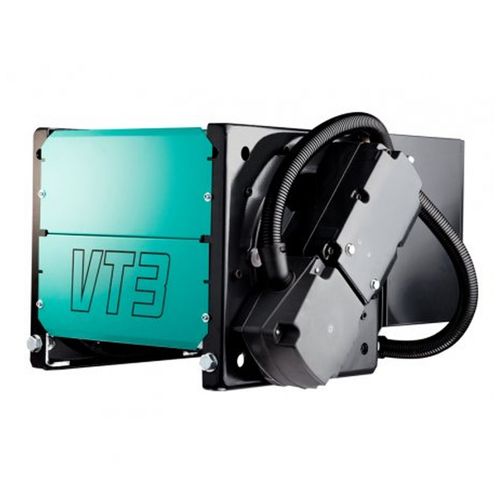

The VT Machinery Winch is a compact high duty winch unit that is based on the VT electric wire rope hoist’s technology and has a wide selection of optional extras available to tailor your winch to your specific needs, whilst offering a winching capacity of 400kg to 5,000kg.

• – Supplied with electrics and control pendant
• – Multi rope output options available
• – Test certificate and wire rope certificate supplied

Technical Information
Verlinde’s VT Machinery Winch’s technical specification:
• – Dual-speed hoisting motors with thermistor
• – Rope drum capacity up to 200m
• – Winching speeds up to 40m/pm
• – High duty unit with grooved drum
• – Fitted with rope pressure roller
• – Multi-rope outputs available
• – Maintenance free DC disc brake
• – MT2 Predictive maintenance tool optional
• – Hook blocks and diverter pulleys available
• – Four steps gear limit switches
• – Electro-mechanical overload protection
• – Low voltage Control 48V
• – Power supply: 415V / 3 ph / 50Hz
• – Motor protection: IP55 / insulation class F
• – Push button box with emergency stop
• – Hoist owners manual (EEC regulations)
• – Set of electrical diagrams
• – Provided with EC Declaration of Conformity
