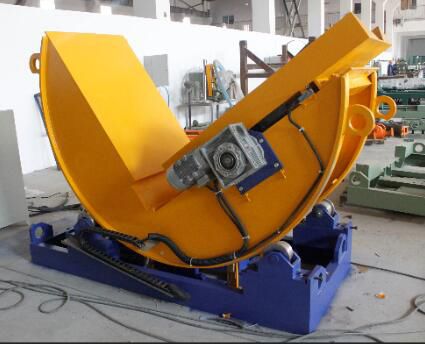

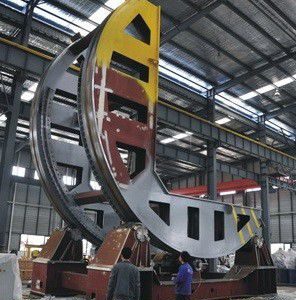

FHOPE supplies up ending solution, Coil tilter/coil upender was applied for cable/steel/mould industries.
Our sales, equipment service, customer service and engineering departments can help you design the optimum protective packaging system for your application.
Features:
² Individual electric panel control.
² Inverter controls that allow speed adjusting.
² Steady contracture, oblique gear and worm speed reducer.
² Micrometric setting device make machine adjustable in irregular floor.
² Electric and Mechanical displacement restrictors adopted to grantee a safety operation.
² Position locking function allowing machine stop at any angle.
² Easy maintaining.
² Automatically position fixing when power off for safety operation.
² Strong and durable structure
² With slid table device: can control the horizontal direction of outward stretching movement. Facilitate the movement of objects on the surface of the machine.
Control:
1. Control panel or remote control
2. Invertors for adjusting the speed
Parameters:
Wire Coil size: OD:1400mm Width:1200mm
Working table: 1400x1200mm
Max loading: 5T
Turn-over speed: 60-90secs
Power output: approx. 1.5kw
Perspective: 90º single way turn-over
Power voltage: AC 380V, 60HZ
Operation : electric
Applications : for coils
