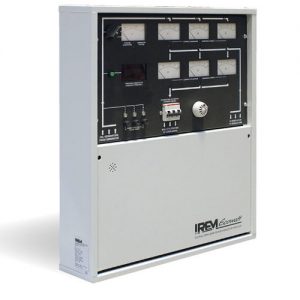

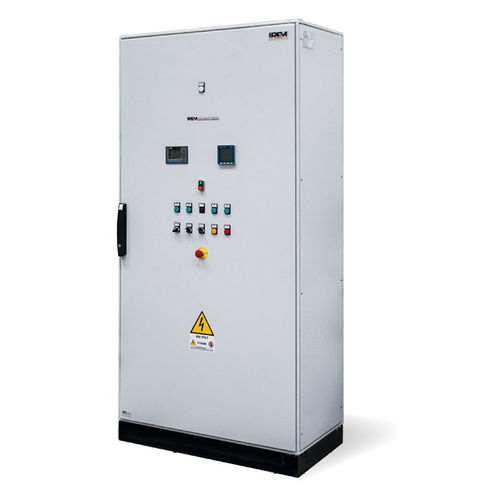

CONTROL BOARD FOR PARALLEL TO THE ELECTRICAL GRID
QPR/S
CONTROL BOARD QPR/S 3-200 KW
GENERAL CHARACTERISTICS
Certifications – CEI 61439-1, CEI 61439-2, CEI0-21/A70 (network connection LV);
Power range – 3 – 200 kW
Voltage – 230/400V – 277/480V – 440V
Frequency – 50/60 Hz
Automation – mini-PLC
Level meter/pressure – included, conductive sensors type
Interface operator panel – LCD pannel
Network analyzer – digital, three-phase, measurement of voltages, currents, frequency, cos.f, active/reactive/ apparent power
Protections included – network voltage / frequency control protection, generator magnetothermal protection
ANSI code – 27, 57, 47, 78, 81L, 81H, 81R
Power factor correction – included, through internal capacitors battery
Protection grade – IP55

OPTIONALS
ANALOGIC LEVEL SENSOR 4-20 MA SIGNAL
REMOTE CONTROL AND REMOTE MANAGEMENT SIGNALLING THROUGH SMS
ANTI-CONDENSATION HEATERS THERMOSTATED, VENTILATED
CABINET WITH GLASS DOOR

Other characteristic : electric, digital, parallel
