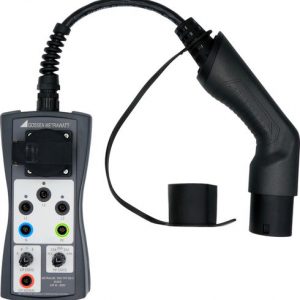

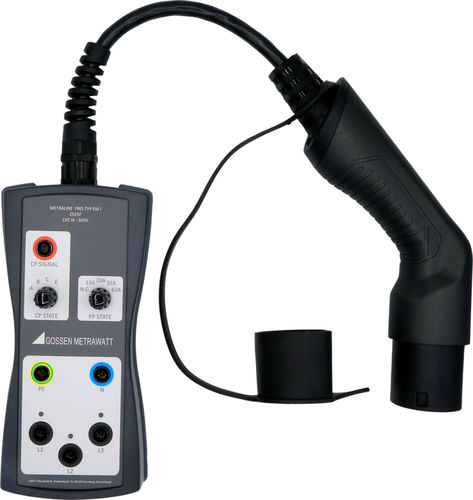

Single and 3-phase test adapter with type 2 plug for testing the effectiveness of protective measures at electric charging points with the Profitest Master. Simulation of fictitiously connected electric vehicles and simulation of current-carrying capacity per IEC 61851-1. Extended CP test pin for testing charging points with permanently attached charging cable.

-Vehicle simulation (CP)
Vehicle states A through E are selected with a rotary switch.
-Cable simulation (PP)
The various codings for charging cables with 13, 20, 32 and 63 A, as well as “no cable connected”, can be simulated with the help of a rotary switch.
-Fault simulation
Simulation of a short-circuit between CP and PE by means of a rotary switch
-Indication of phase voltages via LEDs
Depending on the charging station, either one or three phases can be active.
-Testing of electric charging stations with permanently attached charging cable by means of an extended CP test pin

Type : electric
Applications : test
Other characteristics : single-phase/three-phase
