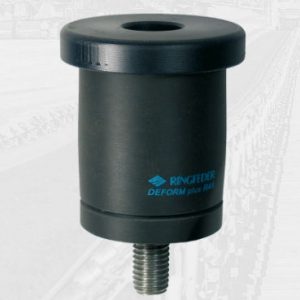

Elastomer bumperDEFORM plus® R

These shock absorbing units are repeatedly resilient and are supplied ready for assembly and incl. screw.

Characteristics
SHOCK ABSORBING Elements DEFORM plus® R/RMP
Reusable buffer for absorption of kinetic energies without additional spring.

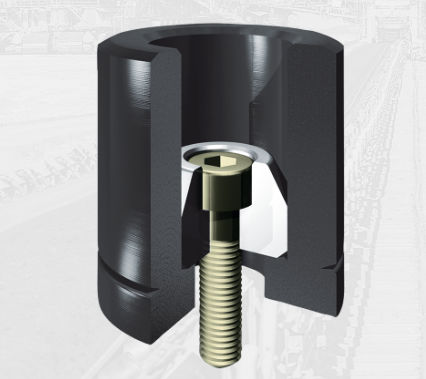

The casing combines the function of a spring and a damper. It can be reused after a dynamic load. Dependent on the velocity, the maximum supporting load automatically adapts to the impact energy, which means that i.e. equal masses are retarded more softly at lower velocities.

Working temperature: -10°C up to +50°C.

Ambient conditions:

The material is resistant to

Bleach liquor 3%
Sugar solution 30%
Hydrogen peroxide 10%
Ammonia 5%
Acetic acid 2%
Formic acid 2%
Linseed fatty acid
Tannic acid solution 20%
Lubrication grease and oil
A continuous contact with water should be avoided. In accordance with DIN 4012, building material class 2, the material is classified as non-combustible, dripping (off).

Material : elastomer
