redundant Safety inclination sensor

open expert video

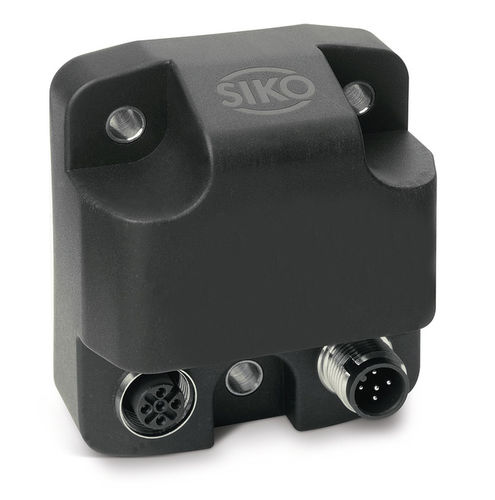

The inclination sensor IKM360R is a redundant safety inclination sensor, which has been specially developed for use in mobile machines. It can be used in safety-critical applications – up to performance level PLd. Thanks to its particularly robust design, an optionally redundant CANopen or CANopen Safety interface, it is ideally suited for tough conditions in mobile machines.
Profile IKM360R:
Resolution of 0.001°
Accuracy ±0.8°, over the entire measuring and temperature ranges
Suitable for applications up to Performance Level PLd
IP6K9K, IP67 protection category
temperature-compensated from -40° C … +85° C
With PURE.MOBILE technology
Mechanical data
Feature – Technical data – Additional information
Housing – plastic/stainless Steel –
Mounting type – 3-point mounting –
Weight – ‘•0.149 kg –
Electrical data – –
Feature – Technical data – Additional information
Operating voltage – 8… 36VDC – reverse-polarity protected
Current consumption – £100 mA – without load
Status display – 2x two-color LEDs (red/green) – Device status/CAN status
Power rating – ±36 V – CAN interface
Température drift – £ £0.02 7K –
– typical 0.008 7K –
Interface – according to ISO 11898-1/2, not electrically isolated – CANopen, CiA 301, CiA 303 Part 3, CiA 305, CiA 410
– according to ISO 11898-1/2, not electrically isolated – CANopen Safety, CiA 301, CiA 303

Number of axes : dual-axis
Output : CANopen
Technology : mechanical
Other characteristics : temperature-compensated, IP67
Inclination : Min.:
Resolution : 0.001 °
