This revolutionary Dry Ice pellets maker sets new standards for producing Dry Ice. It makes using Dry Ice easy. You can have high-quality Dry Ice when you want it, at the turn of a switch. Dry Ice’s main logistical problem is: you can’t store it. But you can store liquid carbon dioxide in a suitable vessel. This gives you a “buffer” of potential Dry Ice ready to be produced when you need it.
There are pure economic benefits:
Delivering LCO2 infrequently is cheaper than delivering Dry Ice frequently.
Lower cost LCO2 can also mean useful savings on the unit cost of Dry Ice.
The Pelletizer takes LCO2 and brings it up to near atmospheric pressure and turns it into a mixture of gas and solid in the form of “snow”. The solid is compressed in triple chambers and extruded to produce hard pellets or nuggets in any size from 1.7 mm to 16 mm diameter.
Site-produced Dry Ice will always be fresher, and so more effective, than Dry Ice produced at a centralized factory, sometimes days in advance, and then shipped to you.

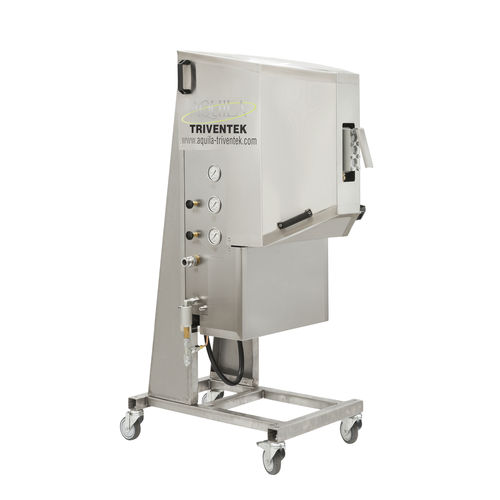

PE80 Pelletizer can be integrated to feed directly into packing lines or into Dry Ice blast cleaning stations for automated operations. The PE80 can be upgraded by the addition of the patented RE80 Recovery Unit, which captures and recycles revert gas to practically halve the cost of Dry Ice.
Technical Data:
Power supply: 3×380 – 415/50Hz
Power consumption: 3 kW
Max. current: 6,5 Amps
Dimensions (WxDxH): 600x1000x1560 mm
Weight: 203 kg.
Pressure range: 14-23 bar
Production rate: 80 kg/h at 18 bar
Max ambient temperature: 40°C
LCO2 to dry ice conversion: 2.5:1
Mass flow rate : Max.:
