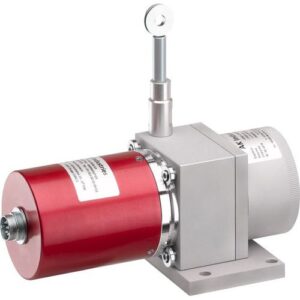

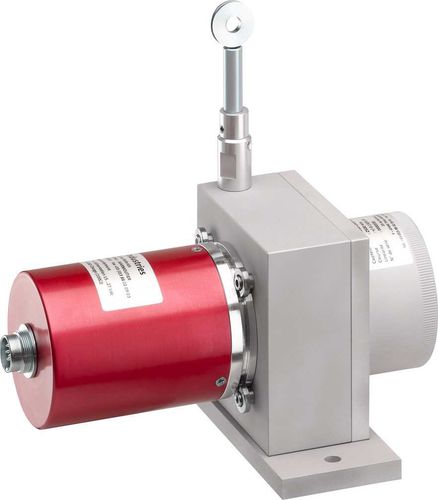

Draw-wire position sensorCD80

Linear potentiometer displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value according to the movement of the mobile. The sensor provides a direct ohmic value on a range going up to 2000 mm.

• Range up to 2000 mm
• Output signal :
• – 1kΩ ; 5kΩ ; 10kΩ
• Standard linearity :
• – +/- 0,15% (+/-0,10% optional)
• Resolution :
• – Quasi infinite (depends on the measuring device)

Type : draw-wire
Technology : magnetic, potentiometer, mechanical, optical
Output signal : analog, digital, CANopen, CAN bus, PROFIBUS, SSI, EtherCAT, Ethernet, serial
Protection class : IP54, IP67
Applications : for cylinders, industrial, for harsh environments, for hydraulic applications, for mobile hydraulics, for valves, for automotive applications, for robotics
Other characteristics : absolute, incremental
Measuring range : Min.:
