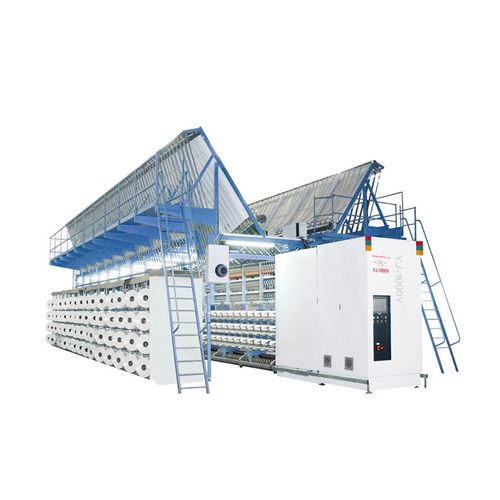

Draw texturing machineYJ1000V

MODEL YJ1000V-240/264/288 HIGH SPEED ELECTRON-CONTROLLED DRAW -TEXTURING MACHINE
Main Datas
Spindle number – 240spindles (standard), 264spindles,288spindles
Max. mechanical speed – 1000m/min (W2 feed roll speed)
Twister – Type 8 disc friction unit
First heater – Biphenyl/2000mm
Second heater – Bipheny/1460mm
Cooling rail length – 1100mm
Diameter of take-up roll – Φ100mm
Diameter of feed roll – Φ75mm
Diameter of oiling roll – Φ75mm
Distance of both spindles – 110mm
Pitch – 1440mm
Denier of fiber – 55 – 250 dtex
Package of take – up – Φ250×250mm
Overall size – 18780×6724×5250(Fixed creel)
power
Whole power – 200.5KW
Effective power – 90.5KW

Use
This machine is used to make the polyester fiber and polypropylene fiber to be low, middle and high stretch fiber through tw1ster. If equipped with intermingle nozzle, this machine can make intermingle fiber.
Feature
1.The first heater (deforming heater) and the second heater ( setting heater) adopt biphenyl air heating. The computer controls the heating and temperature control. The precision of temperature control is +1C, assure every spindle s temperature to be almost same. This is beneficial for even dying. 2.The machine has the features of simple structure, reliable transmission ratio, low noise level and easy technological adjustment. 3.The advanced designed electrical control system makes the operation simple, running reliable. Man -machine interaction can be realized by touching screen.

Type : draw
