Distribution transformerKA

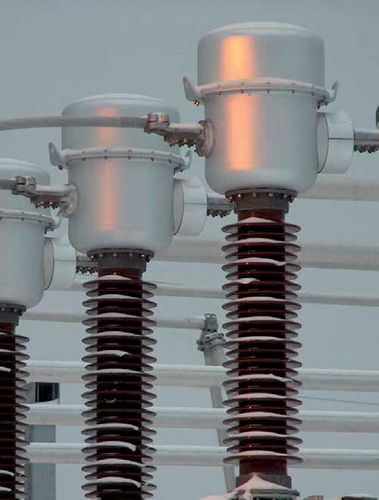

Combined Instrument Transformers contain a current transformer and an inductive voltage transformer within the same body.
Thus they are used in the same applications as their respective independent transformers; they separate meters, counters, relays, etc., from the high voltage circuit, and provide a scaled replica of the current and voltage in the HV line.

Type : distribution
Configuration : immersed
Electrical characteristics : high-voltage
Mounting : floor-standing
