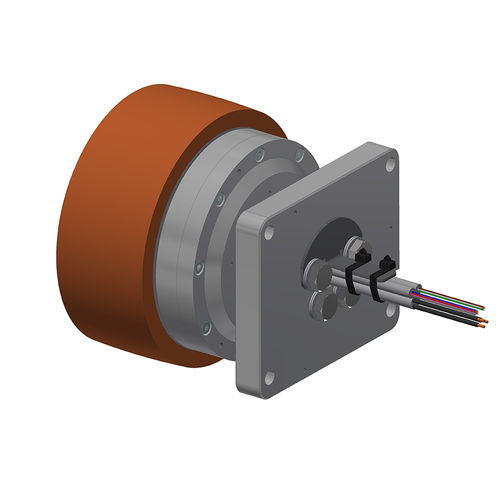

BLDC wheel hub motor i-Wheel 3213.00-3XXX

Direct drive – Benefits in a nutshell
No gearbox – no wear
Much longer service life compared to conventional drive technology with a gear stage
Excellent running properties with barely perceptible noise level
Ultra-compact with extremely high power density
Possible to replace the wheel coating at our premises

Safety first
Rotational control system using diverse redundancy
PL-d safety level achievable with suitable controller
Safe production processes, as there are no risks of contamination from gear oils and greases (no gearbox)

The choice is yours – we implement it
Encoder optional: BiSS, SSI, TTL incremental (various resolutions)
Brake optional: spring-operated brake
Can be combined with various controllers
Customer-specific mechanical integration and system connection

AC/DC : direct current
Type : BLDC
Voltage : 48V
Configuration : compact
Number of poles : multipole
Other characteristics : direct-drive
Torque : 10 Nm (7.3756 ft.lb)
Power : 161 W (0.219 hp)
Rotational speed : 154 rpm (967.61 rad.min-1)
