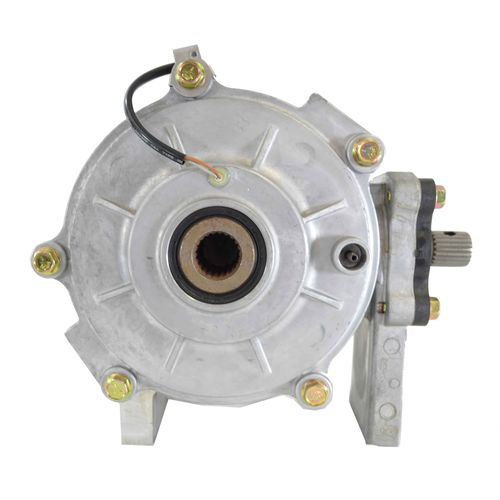

Differential

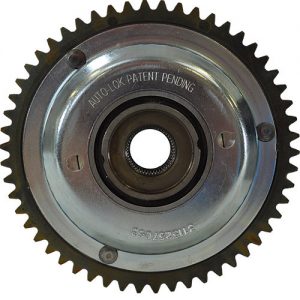

The Hilliard Front Drive System is an electro-mechanically activated bidirectional overrunning clutch. When 12 volts of power are sent via the 4WD switch, the unit is activated to engage both front wheels instantaneously, whenever the rear wheels lose traction. The clutch also releases or overruns automatically the instant the rear wheels regain traction.
Because torque is transmitted to both front wheels, it is a “true” 4WD. The overrunning characteristics of this system allow for an on-demand 4WD engagement and steering ease. Typical applications for Hilliard’s front differential include, ATV’s UTV’s, side by sides and compact tractors.
Applications
ATV/UTV – Side By Side
Motion Control Type: On Demand/On the Fly 4 WD Differential

Type : planetary
Shaft orientation : coaxial
Torque : 20 – 50 Nm
Number of stages : single-stage, two-stage, three-stage
Performance : precision, low-backlash, high-torque, high-efficiency, high-rigidity, maintenance-free
Applications : for industrial applications, for servo motors
Other characteristics : compact, for electric motors, for DC motors, for asynchronous motors
