Diameter measuring device55 series

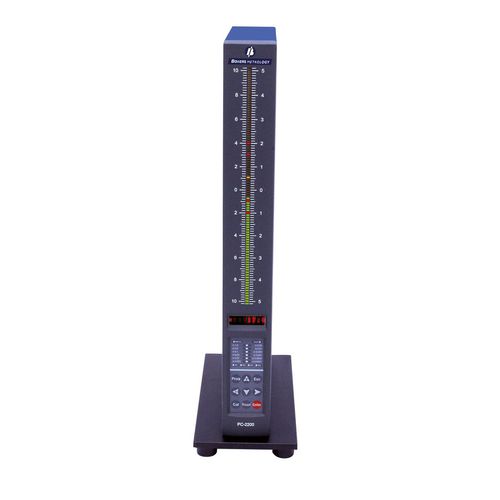

The Bowers PC-2200 is a state of the art flexible electronic/air column capable of operating with air gauging products and measuring probes. The advanced new column contains a multitude of measuring functions including static and dynamic gauging, classification grading, probe mixing, (A+B), (A-B), etc.

Features
• Metric/Imperial digital display
• 3 colour LED graphic display
• 1, 2 or 4 probe input options
• Probe mixing (A+B), (A+B+C) etc.
• Air/Electronic converter 1 or 2 inputs
• Static or Dynamic mode (Max, Min, TIR)
• Tolerance and Approach limit settings
• Accuracy 0.5% full scale +/- resolution
• Resolution 0.1, 0.2, 0.5, 1.0 and 2.0µm
• RS-232, PLC or Logic controller output
• Dual supply voltage (220 / 100 volt)

Measured value : diameter
Technology : electronic, LED, pneumatic
Configuration : benchtop
Other characteristics : with display
