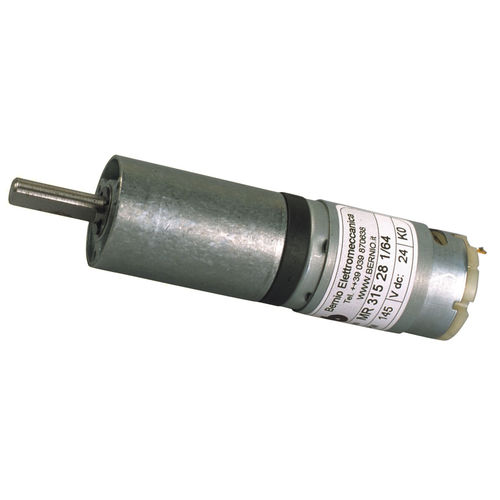

Length “L” of the gearmotor as a funtion of reduction and output number of revolution with the standard motor 383 8 output W 9000 Rpm loadness, 12 or 24 Vdc. Starting corrent 2,1 A.

Drivingshaft supported by a self lubrificating bushings. Output shaft supported by a self lubrificating bushing. The motor is plated for corrosion strength. The gearbox is die casting made.

*The speed rotation can change of ±10%.

The test was made using a (0,5 A) corrent with a timing 5′ ON 9′ OFF
The starting corrent is (I max) and cannot be maintained for more than 2″.

Max forces which may act on the output shaft: Axial 0 N, Radial 10 N on the extremity of output shaft.
The standard motors are in conformity with CE standard.

Possibility to apply other motor types Ø 40 or 23,5 with different voltage and RPM and with electrical noise suppressors.

Motor type : DC
Type : planetary
Shaft orientation : coaxial
Power : 0 W…10 W
Torque : 0.2 – 0.5 Nm, 0.5 – 1 Nm, 1 – 5 Nm, 5 – 10 Nm
Voltage : 12V, 24V
Product applications : industrial
Other characteristics : compact
