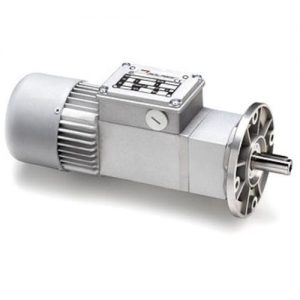

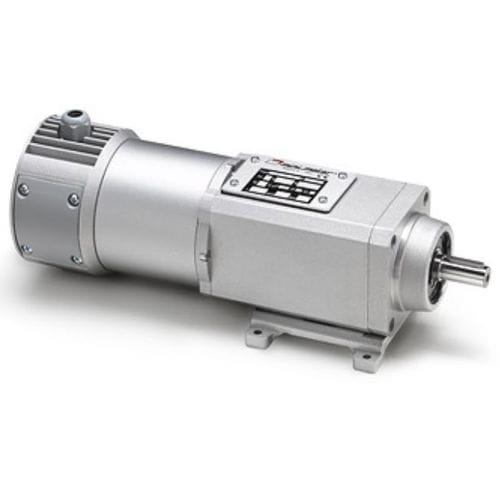

DC gear-motorPAC

COAXIAL GEARED MOTOR

MOTOR: direct current with permanent magnets, totally enclosed motor without external ventilation. Class F winding. 24 Vdc power supply. Max. input power 230 W. IP65 protection according to CEI EN 60529.

GEAR UNIT: with casing in die-cast aluminium. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long life oil. Sealing rings made in special rubber for high temperatures. 14 gear ratios (i) available, from 6.48 to 372.8. Rated torque 20 Nm. Version B3 or B5.

Motor type : DC
Type : helical
Shaft orientation : coaxial
Power : 100 W…500 W, 50 W…100 W
Torque : 10 – 20 Nm
Voltage : 24V, 12V
Other characteristics : permanent magnet, aluminum frame
