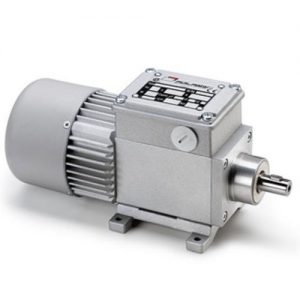

COAXIAL GEARED MOTOR WITH PLANETARY REDUCTION GEAR
MOTOR: direct current with permanent magnets, totally enclosed with external ventilation. Class F winding. 24 Vdc power supply. Absorbed power 60 W. IP65 protection according to CEI EN 60529.
GEAR UNIT: fi rst stage with die-cast aluminium case, second stage in steel. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long life oil. Sealing rings made in special rubber for high temperatures. 15 gear ratios (i) available, from 37 to 2209.5. Rated torque 23.5 Nm. Version B3 or B5.
Motor type : DC
 Type : planetary, gear train
 Shaft orientation : coaxial
 Power : 10 W…50 W, 50 W…100 W
 Torque : 20 – 50 Nm
 Voltage  : 24V, 12V
 Other characteristics : permanent magnet, aluminum frame
