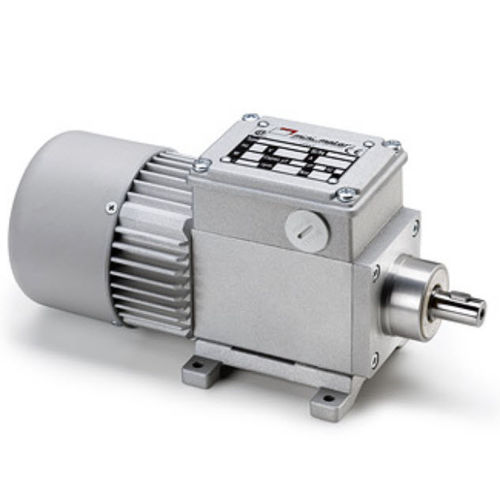

DC gear-motorACC 24 MP

COAXIAL GEARED MOTOR WITH GEAR PAIRS

MOTOR: direct current with permanent magnets, totally enclosed with external ventilation. Class F winding. Power supply with 24 Vcc.
Absorbed power 60 W. IP65 protection according to CEI EN 60529.

GEAR UNIT: with casing in die-cast aluminium. Case-hardened and hardened gear pairs with shafts rotating on roller bearings.
Lubrication with long-life oil. Sealing rings made in special rubber for high temperatures. 15 gear ratios (i) available, from 7.4 to 441.9. Rated torque 5 Nm. Version B3 or B5.

Motor type : DC
Type : helical
Shaft orientation : coaxial
Power : 50 W…100 W, 10 W…50 W
Torque : 1 – 5 Nm
Voltage : 24V, 12V
Other characteristics : permanent magnet, aluminum frame, IP65
