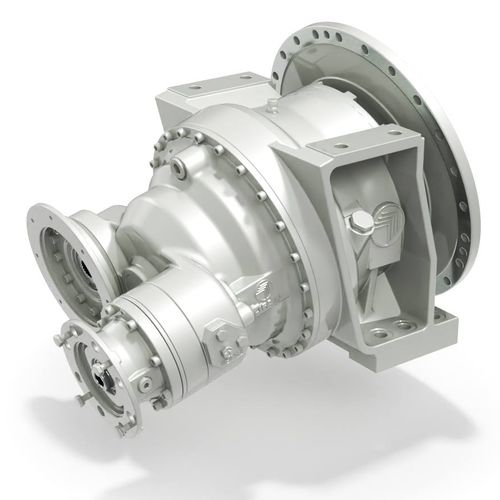

This solution is designed for use with medium/large mixer trucks that have medium/long delivery distances to travel. Bonfiglioli’s innovative solution comprises a Bonfiglioli 500 Series gearbox coupled to an AC electric motor, providing normal power, and a DC electric motor for emergency use. This product not only guarantees greater energy efficiency and reduced fuel consumption, but also helps cut cement mixer truck operating costs. Performance is improved too: rotation speed control is more accurate, operating noise levels are significantly lower. Finally, functionality remains higher in the event of a failure: the presence of a second backup DC motor provides reassuring redundancy and eliminates the risks and potentially hazardous situations caused by failures of the drum emptying system.

Key benefits
Increased energy efficiency
Reduced fuel consumption
Optimized gear design for maximum efficiency and minimum noise

Torque range
60,000 Nm (531,044 in-lb)

Gear ratios
Main: 1:220
Emergency: 1:2200

Input speed
Main: 3500 rpm
Emergency: 2000 rpm

Motors
Main: Induction AC
Emergency: PM DC motor

Motor type : DC
Shaft orientation : parallel-shaft
Torque : > 10 kNm
Product applications : for mixers
