Gear motors
Bühler Motor supplies DC and BLDC motors with spur, planetary and worm gears that offer excellent value for money.
They are available as standard products, variants or customized options.

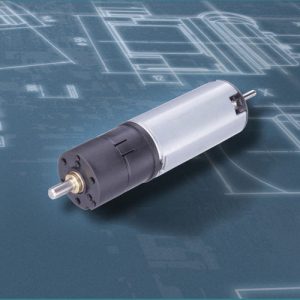

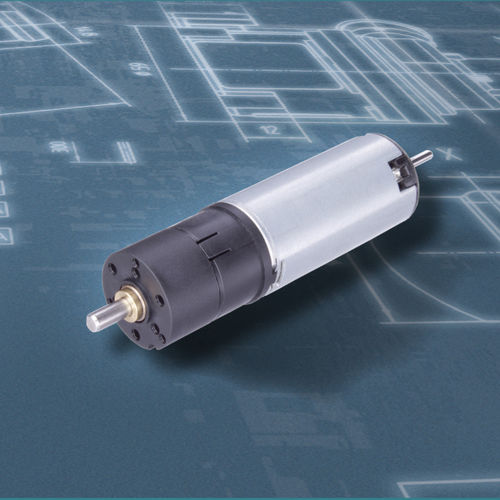

Planetary gears
Our plastic planetary drives are characterized by superb durability and quiet running at high torques.
In addition, they are both adaptable and economical.

Design
Gear housing: Plastic
Commutator: Copper / 3-segments
RFI protection: Suppression disk; 2 capacitors
Insulation class: Winding F, otherwise A
Protection class: IP20
Commutation: Carbon brushes
Armature: straight slot
Magnet system: Permanent magnets, 2-pole
Motor bearings: 2 sintered bronze bearings
Motor housing: Steel, corrosion protected
Motor end shields: brush end plastic,
drive end zinc die-cast
Planetary gear: Plastic gears
Life expectancy**: up to 600 h
Weight: 90 – 100 g
Axial play output shaft: 0.05 – 0.6 mm

Motor type : DC
Type : planetary
Shaft orientation : coaxial
Torque : 0.1 – 0.2 Nm
Voltage : 12V
Other characteristics : compact, permanent magnet, high-torque, modular
