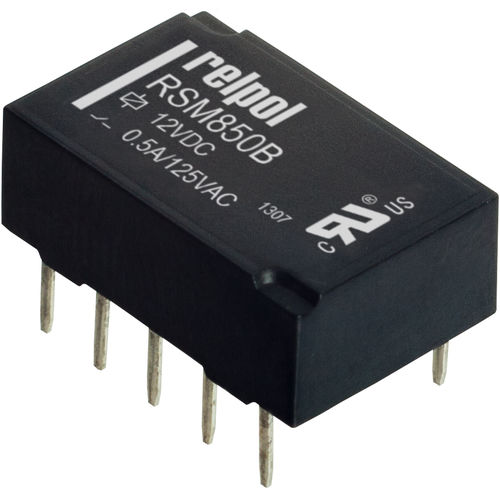

Contacts: 2 CO; rated load AC1 – 0,5 A/125 V AC; for PCB; coils DC of up to 24 V DC; low coil power 0,10 … 0,15 W

Technical info
Contact data
Number and type of contacts :2 CO
Rated / max. switching voltage AC :125 V /250 V
Rated load (capacity) :AC1: 0,5 A / 125 V AC; DC1: 2 A / 30 V DC

Coil data
Rated voltage DC :3, 5, 6, 9, 12, 24 V DC
Rated power consumption DC :DC: 0,10 W 3 … 12 V 0,15 W 24 V

General data
Electrical life resistive :AC1: 105 0,5A, 125 V AC
Mechanical life (cycles) :108
Ambient temperature operating :-40…+70°C

• Polarized, bistable relays with one coil
• DC coils of up to 24 V DC, low coil power 0,10 … 0,15 W
• For PCB • Sealed, for wave soldering and cleaning Dielectric strength 1000 Vrms
• Applications: for télécommunication devices, office equipment, alarm Systems, measuring instruments, medical monitoring devices, AV devices, control sensors
• Conforms to FCC Part 68 – 1500 V – lightning surge
• Récognitions, certifications, directives: RoHS

Control voltage : DC, AC
Features : subminiature
Mounting : for printed circuit boards
Other characteristics : bistable, for railway applications
Switching current : 0.5 A, 2 A
