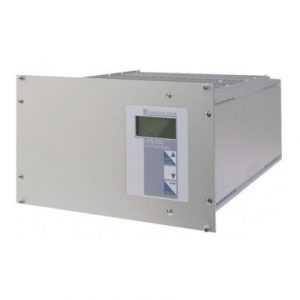

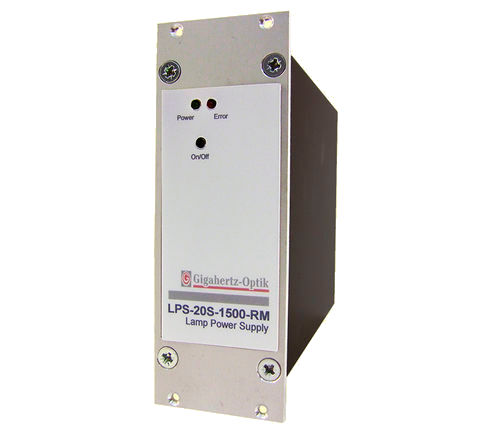

The LPS-20 is a microprocessor-based current and voltage source especially designed for the operation of LEDs, OLEDs and other light sources requiring high resolution, very low noise operating voltage and current that is controllable and measureable. It is set-up for full remote control operation in CW or Flash mode via its RS232 or alternative RS485 opto-coupler isolated interface. DLL and Labview VI are available. Its design includes two high resolution 16 bit digital to analog converters for precise current and voltage control. It can be operated either in constant voltage or constant current mode. The variable (current or voltage) can be measured with a high resolution ADC. To avoid unintentional power loss at the linear control element its input voltage is set by a DC/DC converter to the optimum voltage needed. Beside the CW mode the output of the LPS-20 can be controlled for a defined time (single pulse) with rise time as short as 500µs (load dependent).
Type : DC/DC
Output : variable-output
Other characteristics : digital, for LED lighting, remote control, rack-mount
Input voltage : Min.:
Output voltage : Min.:
Current : Min.:
