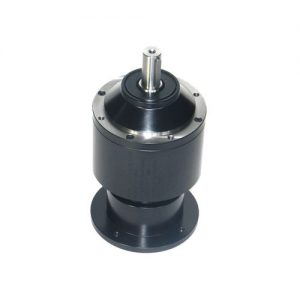

AKIM two-Disc Gears are robust, strong and reliable – even for rough use. They are available in two versions: with output side shaft end or with hollow output shaft to put on.
What AKIM two-disc gears especially characterized.
• Robust and reliable
• Fixed-ratios up to 125:1, single-stage
• Multi stage gearboxes on request
• Low or adjustable backlash
• Nominal torque up to 20‘000 Nm
• High overload-safety
• Smooth operation
• Easy motor mounting (Separate flange with coupling)
• Custom design available
What really sets AKIM two-disc-slip-on and plug-on-gears apart from others is.
• Compact construction
• Easy and direct integration into customer’s machines
• Adjustable backlash < 0.02° • Efficiency up to 90% • Nominal torque up to 5'000 Nm • Tapered-roller-bearing-supported output • High overload-safety • Low weight • Smooth operation We build 8 sizes. • 2S-50 – 940 Nm • 2S-60 – 1'745 Nm • 2S-70 – 2'780 Nm • 2S-80 – 4'415 Nm • 2S-90 – 5'485 Nm • 2S-100 – 8'445 Nm • 2S-110 – 14'030 Nm • 2S-120 – 20'060 Nm Type : cycloidal Shaft orientation : coaxial Torque : > 10 kNm, 1 – 2 kNm, 2 – 5 kNm, 5 – 10 kNm
Shaft configuration : hollow-shaft, solid-shaft
Applications : for servo motors, transmission, for aerial cable applications, for milling applications, for heavy-duty applications, for conveyors, for industrial applications, for the chemical industry, for agitators, for vehicles, for robots, for extruders, for marine applications, for medical devices, for the paper industry, for machines, for agricultural machinery, for conveyor belts, for mining applications, for construction equipment, wheel, for roller mills, for lathes, centrifuge, for elevators, for slewing drive, for electrical drives, for rack-and-pinion drives, antenna
Other characteristics : stainless steel, compact, industrial, with flange, single reduction, for the iron and steel sector, for mixers, for milling machines, mechanical transmission, for the cement industry, custom, for the sugar industry, rugged, vertical, for robotics, for packaging machines, for harsh environments, for hot-rolling sheet steel, ATEX, for hot mills, counter-rotating, mounted, for roller press, for machine tools, for continuous operation, for the metallurgical industry, turntable, for wastewater treatment, foot-mounted, for tire manufacturing, high-quality, for motor coupling, for automotive applications
Backlash : Min.:
